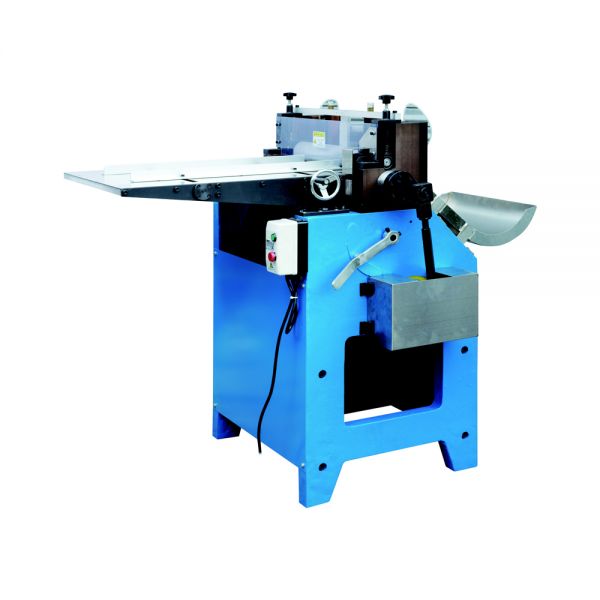

HX420 Center Board Cutter: Precision Cutting for Hardcover Spine Strips

In hardcover bookbinding, the central spine strip (or center board) is the hidden backbone that gives a book its strength and durability. Cutting these narrow cardboard strips to exact dimensions has traditionally been a slow, wasteful process. The HX420 Center Board Cutter changes that – delivering high precision, smooth edges, and exceptional efficiency for binderies producing hardcover books.

Designed Specifically for Spine Strips

Unlike general‑purpose guillotine cutters that waste material and require constant repositioning, the HX420 is purpose‑built for cutting cardboard into small‑width strips used as the central reinforcement in hardcover books. Its reasonable structure and simple operation make it accessible to any bindery worker, while its engineering ensures repeatable accuracy on every cut.

Continuous Feeding – High Accuracy, Minimal Waste

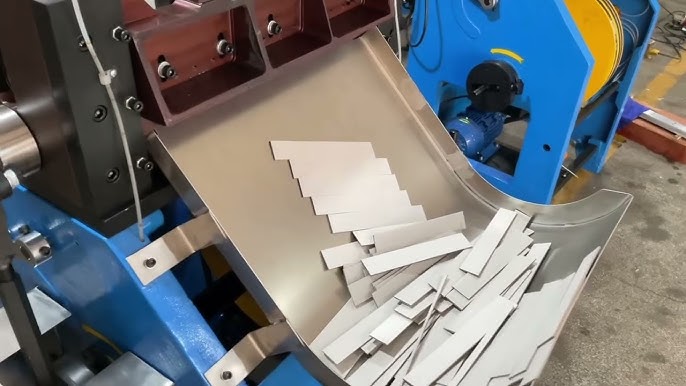

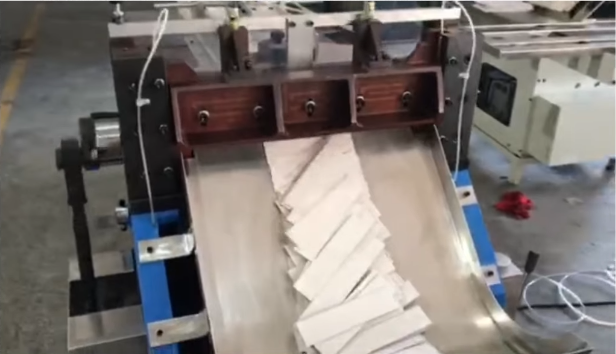

The HX420 features a continuous transport mechanism. A single strip of cardboard (or a wider sheet) is fed into the machine, passes under a hold‑down roller, and is cut by a precision rotary or reciprocating blade. The operator simply keeps feeding material, and the machine delivers one precise strip after another – at a consistent, high speed.

This continuous process eliminates the inefficiency of “slicing papers” manually or with a guillotine, where each cut requires repositioning. The result is little wasting paper – only a tiny kerf is lost – and dramatically higher output per hour.

Smooth Trim Edge & High Precision

A rough or uneven spine strip can show through the cover material or cause poor adhesion. The HX420 produces smooth, clean trim edges on every cut. Width adjustments are made via a micrometer dial or digital readout, holding tolerance within ±0.2 mm. Whether you need 5 mm strips for thin hardcovers or 30 mm strips for thick photo albums, the HX420 delivers consistent quality.

Avoid Low Efficiency – Maximise Throughput

Manual cutting or using a guillotine for narrow strips is notoriously inefficient – operators spend more time measuring and repositioning than cutting. The HX420 avoids low efficiency by automating the feed and cut cycle. One operator can produce hundreds of spine strips per hour – freeing labor for other tasks and ensuring your casing‑in line never waits for materials.

Ideal for Hardcover Bookbinders

The HX420 is widely used in:

• Hardcover book production (novels, textbooks, reference books)

• Photo albums and yearbooks

• Premium notebooks and journals

• Box and slipcase making

It handles greyboard thicknesses from 1.5 mm to 4 mm, and strip widths from 5 mm up to 80 mm (depending on model). The machine is built for durability – a welded steel frame, hardened blade, and easy access for cleaning.

Simple Operation, Reliable Results

Controls are intuitive: start/stop, speed dial, and width adjustment knob. Safety guards protect the operator, and the blade can be sharpened or replaced in minutes. The HX420 requires minimal training – your team will be productive from day one.
