Electric Scissor Lift Pallet Truck: The Ergonomic Backbone of Efficient Bookbinding Material Handling

In any bookbinding operation – from high-volume commercial binderies to specialty print finishing shops – the movement of heavy materials is a daily reality. Reams of cutting paper, stacks of folded sections, and finished book blocks must be transported, lifted, and positioned precisely at different workstations. Traditional manual pallet jacks or forklifts often lack the fine height control, stability, and safety required in a crowded post-press environment. That is where the Electric Scissor Lift Pallet Truck comes into its own.

Designed specifically for applications that demand both horizontal transport and vertical positioning, this electric-powered truck combines the best features of a pallet jack and a mobile work lift. With a lifting capacity of 1.5 metric tons and a maximum lift height of 750 mm, it offers excellent stability, effortless operation, and remarkable versatility – particularly in the bookbinding industry, where it is widely used for cutting paper feeding, folding paper handling, and book block feeding, collecting, and delivering.

This article explores the key technologies, practical benefits, and real-world applications of the Electric Scissor Lift Pallet Truck – and explains why it has become an indispensable tool for modern binderies around the world.

Why Material Lifting Matters in Bookbinding

Bookbinding is a sequence of precision steps: cutting, folding, gathering, binding, trimming, and casing in. At every stage, operators need to lift and position stacks of paper or book blocks at the correct working height. Repeated bending, stretching, and carrying not only slow down production but also lead to operator fatigue and musculoskeletal injuries.

A dedicated lift truck that can raise a heavy load to an ergonomic height – typically 700–800 mm above floor level – transforms the workflow. Instead of bending down to pick up a stack from a pallet, the operator raises the platform to waist height, then slides the stack directly onto the machine table or removes it without strain. The result is faster cycle times, happier workers, and fewer workplace accidents.

The Electric Scissor Lift Pallet Truck is purpose-engineered for exactly this role.

Core Features That Set It Apart

1. Excellent Stability – Even at Full Height

Stability is the most critical safety factor in any lifting device. When a scissor lift raises a 1.5‑ton load to 750 mm, the center of gravity shifts. The Electric Scissor Lift Pallet Truck is built with a wide, robust chassis and a precision‑engineered scissor mechanism that maintains platform levelness throughout the lift range. Anti‑skid surfaces on the platform prevent load shifting, while the low‑profile design keeps the center of gravity well within the wheelbase.

Whether you are moving a pallet of coated paper or a stack of heavy book blocks, the truck remains rock‑solid. Operators can position loads confidently, even on slightly uneven floors.

2. Effortless Electric Lifting + Manual Lowering for Fine Control

Unlike purely manual hydraulic pallet jacks, which require repeated pumping to raise a load, this truck features an electric lifting system. A powerful, maintenance‑free DC motor drives the hydraulic pump, raising the platform smoothly at the touch of a button. Lifting a full 1.5‑ton load to the maximum height takes only a few seconds – with no physical effort from the operator.

Lowering, however, is manual via a proportional release valve. This is a deliberate design choice. Manual lowering gives the operator precise control over descent speed, allowing them to gently place a sensitive load (such as freshly cut paper stacks or already‑folded sections) onto a conveyor or worktable. No jerky movements, no risk of damaging delicate materials.

3. Compact and Integrated Engine Block

Space is often at a premium in binderies. Narrow aisles between guillotine cutters, folding machines, and perfect binders leave little room for large material handling equipment. The Electric Scissor Lift Pallet Truck addresses this with a compact, integrated engine block. The hydraulic pump, electric motor, and battery are all housed within a streamlined chassis that does not protrude beyond the truck’s envelope.

The result is a truck that maneuvers easily in tight spaces, turns in its own length (thanks to the articulated steering design), and can be parked directly next to a machine for easy load transfer.

4. Maintenance‑Free Battery – Always Ready for Use

One of the biggest frustrations with electric industrial vehicles is battery maintenance – checking water levels, cleaning terminals, and scheduling equalization charges. The Electric Scissor Lift Pallet Truck is equipped with a sealed, maintenance‑free battery (typically AGM or gel technology).

There is no need to add distilled water, no risk of acid spills, and no special charging room ventilation required. The battery provides a full shift of intermittent lifting and traveling on a single charge, and it can be conveniently recharged from any standard industrial outlet overnight. For multi‑shift operations, a second battery can be swapped in minutes.

5. Effortless Transport – Smooth Rolling and Ergonomic Handle

When not lifting, the truck works as a standard pallet jack. The load wheels are polyurethane‑coated for low rolling resistance and floor protection. The ergonomic tiller handle features easy‑to‑reach lift/lower buttons and a thumb‑operated travel control (on powered drive versions) or smooth free‑rolling on manual push/pull versions.

Even when fully loaded, the truck can be moved with minimal force, thanks to precision bearings and a well‑balanced design.

Specialized Applications in Bookbinding

The Electric Scissor Lift Pallet Truck has found particularly wide acceptance in the bookbinding industry, where it performs four key material handling tasks:

Cutting Paper Feeding

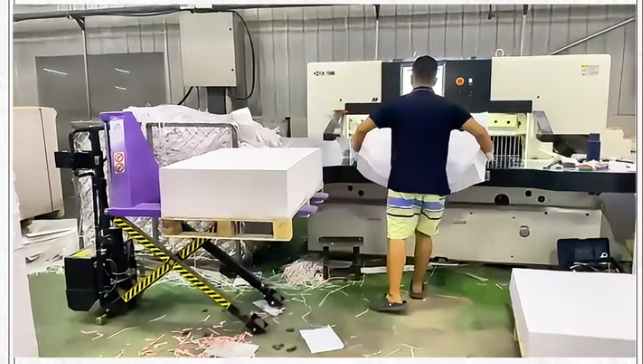

Paper cutting is the first step in most binding workflows. Heavy reams (often weighing 50–80 kg each) are stacked on pallets. The electric lift truck raises the entire stack to the height of the guillotine cutter’s work table. The operator simply slides the pile onto the cutter’s air table or back gauge – no bending, no heavy lifting. This reduces setup time and prevents paper edge damage that can occur when dragging stacks manually.

Folding Paper Handling

After cutting, paper moves to folding machines. Folders often require paper stacks to be presented at a specific infeed height. The scissor lift truck positions the stack exactly at the feeder’s level, and the integrated scale (optional) helps the operator gauge remaining paper quantity. When a folding machine runs at high speed, consistent feeding from an ergonomic height keeps the operator fresh and productive.

Book Block Feeding

In perfect binding or thread sewing lines, book blocks (gathered and glued sections) must be loaded into the binder’s hopper or onto the infeed conveyor. The lift truck raises the entire skid of book blocks to the correct height, and the operator can slide them directly onto the infeed mechanism. For inline systems, the truck can be used as a mobile buffer – delivering finished book blocks from the gathering line to the binding line.

Collecting and Delivering Finished Products

Once books are bound and trimmed, they are often stacked on pallets or in cartons. The Electric Scissor Lift Pallet Truck collects these finished loads from the delivery end of the casing‑in machine or three‑knife trimmer. The powered lift allows the operator to lower the platform gradually as the stack grows, maintaining a consistent working height for manual stacking or robotic pick‑and‑place.
